Brake shudder isn't always caused by worn brake components. In many cases, it begins during installation. Even a small amount of rust, corrosion, or debris left on the wheel hub can prevent the brake rotor from mounting correctly, leading to rotor runout, Disc Thickness Variation (DTV), and brake vibration over time.
Understanding why proper hub face preparation matters can help reduce customer comebacks, improve braking performance, and maximize brake rotor service life.
What Causes Brake Shudder?
One of the most common causes of brake shudder is Disc Thickness Variation (DTV).
DTV occurs when the brake rotor develops uneven thickness around its braking surface. As the brake pads pass over these high and low spots during braking, they grip and release repeatedly, creating vibration that can be felt through the steering wheel, brake pedal, or vehicle chassis.
In many cases, the root cause isn't the brake rotor itself. It's rotor runout created during installation.
How Rotor Runout Develops
Rotor runout occurs when the brake rotor does not sit perfectly flat against the wheel hub.
If rust, corrosion, dirt, scale, or burrs remain on the hub face, they create an uneven mounting surface. Even contamination measuring only fractions of a millimeter can cause the rotor to rotate slightly off-center.
As the rotor turns, the brake pads wear the high spots more quickly than the rest of the braking surface. Over time, this uneven wear develops into Disc Thickness Variation, eventually causing brake shudder.
Why Hub Face Cleaning Matters
Every DBA brake rotor is precision CNC machined to extremely tight tolerances to minimize manufacturing runout.
However, even the most accurately manufactured brake rotor cannot compensate for an uneven mounting surface.
Proper hub preparation before installation is essential to ensure the rotor seats correctly and performs as intended.
Before Cleaning
Heavy rust and corrosion prevent the brake rotor from mounting evenly against the hub.
After Cleaning
A clean, flat hub face provides the correct mounting surface for accurate brake rotor installation.
Evidence of Improper Installation
The images below show brake rotors that were installed onto contaminated hub faces.

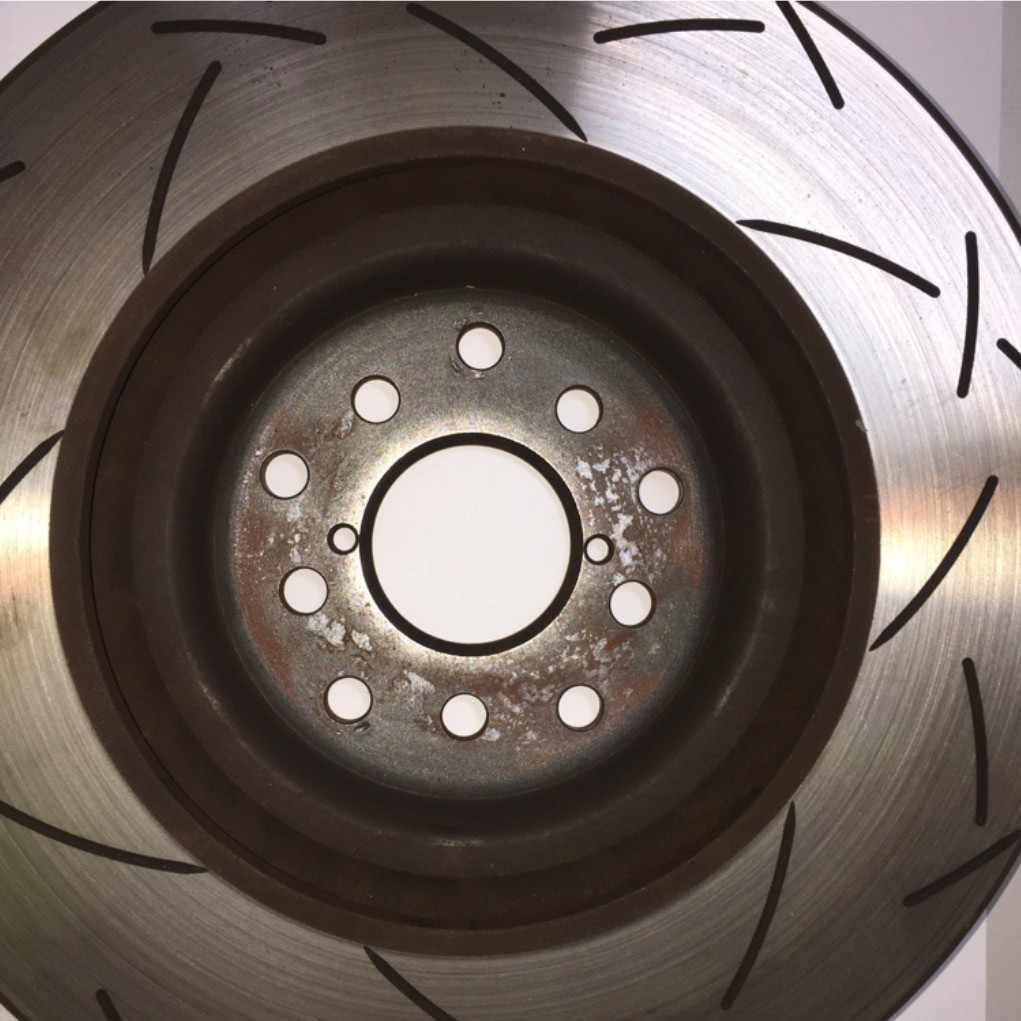

Rust and debris trapped between the rotor and hub create compression marks on the mounting face. These marks indicate where contamination prevented the rotor from seating correctly, resulting in rotor runout.
Compression marks left by rust and debris trapped between the hub and brake rotor during installation.
One example also shows burrs created by jacking screws used during rotor removal. If these burrs are not removed before installing the new rotor, they can further increase rotor runout.
Severe Hub Face Contamination
The following examples show severe contamination concentrated on one side of the mounting face.
This uneven buildup prevented the brake rotor from sitting flush against the hub and resulted in significant brake shudder after installation.
Examples of severe contamination and mounting surface damage that contributed to excessive rotor runout and brake shudder.
Best Practices for Brake Rotor Installation
To help minimize the risk of brake shudder and maximize brake system performance:
- Thoroughly clean the wheel hub before installing the new brake rotor.
- Remove all rust, corrosion, dirt, and scale from the mounting surface.
- Inspect the hub for burrs around wheel studs and jacking screw holes.
- Ensure the brake rotor sits completely flush against the hub.
- Measure rotor runout after installation whenever possible.
- Follow the vehicle manufacturer's recommended installation procedures and torque specifications.
Taking a few extra minutes during installation can help prevent brake vibration, reduce customer comebacks, and extend brake rotor service life.
Key Takeaways
- Brake shudder is often caused by Disc Thickness Variation (DTV).
- Rotor runout frequently begins with poor hub face preparation during installation.
- Rust, corrosion, debris, and burrs can prevent the brake rotor from mounting correctly.
- Proper hub cleaning helps minimize rotor runout and promotes consistent braking performance.
- Careful installation practices help maximize brake rotor life and reduce the likelihood of brake vibration.
