How to Fit a Hat-Type Brake Rotor

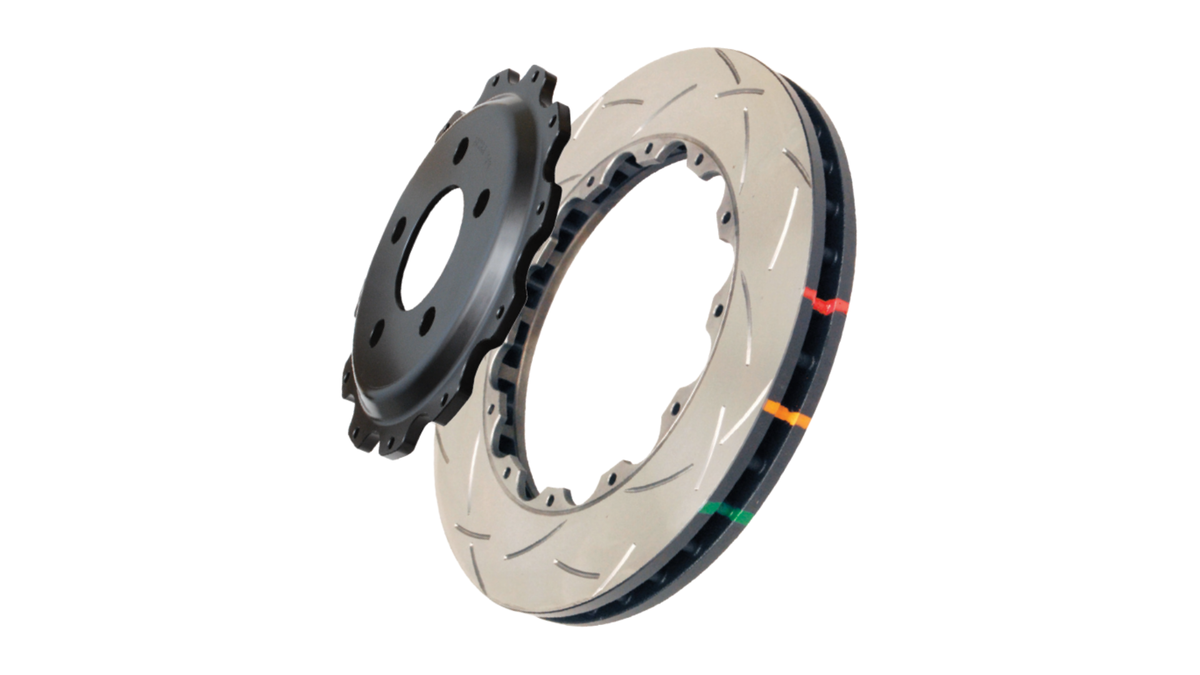

Hat-type brake rotors, commonly used in two-piece rotor assemblies, require careful installation to achieve consistent braking performance.

Correct hub preparation, rotor seating, runout measurement, fastener torque and bedding are all important parts of the process. This guide outlines the key steps to follow when fitting a hat-type brake rotor.

Always follow the vehicle manufacturer’s service instructions and the brake rotor and pad manufacturer’s recommendations. Brake system work should be performed by a qualified technician.

Before You Begin

Before removing the original rotor, confirm that you have:

  • The correct brake rotor for the vehicle
  • Brake pads suitable for the vehicle and driving conditions
  • The correct tools and safety equipment
  • A torque wrench
  • A dial indicator for checking rotor runout
  • An appropriate brake cleaner
  • Access to the vehicle manufacturer’s torque specifications

How to Fit a Hat-Type Brake Rotor

  1. Remove the wheel.

    Raise and support the vehicle safely according to the vehicle manufacturer’s instructions. Remove the wheel and keep the lug nuts or wheel bolts in a safe location.

  2. Remove the brake pads and retract the caliper piston.

    Remove the brake pads and retract the caliper piston using the correct service procedure for the vehicle.

    Some service procedures call for opening the bleeder while retracting the piston. Only do this when specified by the vehicle manufacturer or an approved workshop procedure. If the bleeder is opened, the brake system may need to be bled afterwards.

    Do not force contaminated brake fluid back through the system. Check the caliper condition while the pads are removed, including the piston, slides and hardware.

  3. Remove and support the brake caliper.

    Remove the caliper from its mounting points without disconnecting the brake hose.

    Secure the caliper using a suitable support. Do not allow it to hang from the brake hose, as this can damage the hose or its connections.

  4. Remove the old brake rotor.

    Remove the original rotor from the hub. If the rotor is difficult to remove, use the correct removal method for the vehicle and avoid damaging the hub or surrounding components.

  5. Inspect the hub and wheel bearings.

    Check the hub for damage and inspect the wheel bearings for wear or excessive movement.

    Refer to the vehicle manufacturer’s service information for the correct bearing inspection method and specifications. Replace worn or damaged components before installing the new rotor.

  6. Clean the hub face.

    Remove all rust scale, dirt and debris from the hub face.

    The hub face must be clean and free from raised areas so the new rotor can sit flat against the hub. Even a small amount of debris between the mating surfaces can contribute to rotor runout, vibration or uneven pad contact.

  7. Install the new brake rotor and check runout.

    Fit the new rotor to the hub and make sure it is fully seated against the clean hub face.

    Use a dial indicator to check lateral rotor runout. Where applicable, rotate or index the rotor to the position that produces the lowest runout measurement. Always compare the result with the vehicle or rotor manufacturer’s recommended limit.

  8. Reinstall the brake caliper.

    Refit the caliper and tighten all mounting hardware to the vehicle manufacturer’s specified torque.

    Confirm that the brake hose is correctly positioned and is not twisted, stretched or contacting the wheel or suspension components.

  9. Clean the rotor friction surfaces.

    Remove any grease, oil or foreign material from the rotor friction surfaces using an appropriate brake cleaner and a clean, lint-free cloth.

    Follow the rotor manufacturer’s preparation instructions if the rotor has a protective coating or specific cleaning requirements.

  1. Install the correct brake pads.

Select brake pads that match the vehicle, rotor and intended driving conditions.

Brake pad compounds are designed for different applications. The correct choice may depend on factors such as everyday driving, towing, heavy loads, performance driving or track use.

  1. Check the brake fluid condition.

Inspect the brake fluid and replace it when required by the vehicle manufacturer’s service schedule or when its condition indicates that replacement is necessary.

Do not push dirty or contaminated fluid from the caliper back through the brake system. Follow the correct fluid replacement and bleeding procedure for the vehicle.

  1. Refit the wheel and torque the lug nuts or wheel bolts.

Refit the wheel and tighten the lug nuts or wheel bolts in the correct star or criss-cross sequence.

Continue tightening until all fasteners are secured to the torque specification recommended by the vehicle manufacturer. Aftermarket wheels may require different hardware or torque settings, so check the wheel manufacturer’s instructions when applicable.

  1. Check the brake pedal and carry out a road test.

Before moving the vehicle, slowly press the brake pedal until the pads contact the rotor and the pedal feels firm.

Check for fluid leaks, unusual movement or other issues. Carry out a controlled road test in a safe area and confirm that the vehicle brakes evenly and that there are no abnormal noises or vibrations.

  1. Complete the bedding process.

Follow the brake pad manufacturer’s bedding procedure.

The new pads and rotors need time to develop a consistent contact surface. As a general guide, approximately 185 miles of normal driving may be required, although the correct distance and procedure can vary depending on the vehicle, pad compound and rotor application.

Avoid unnecessary hard braking during the initial bedding period unless required for safety.

Why Hub Preparation Matters

A new brake rotor cannot perform correctly if it is installed against a dirty or uneven hub face.

Rust scale, grit and other debris can prevent the rotor from sitting flat against the hub. This can increase rotor runout and contribute to steering wheel vibration, brake pedal pulsation or uneven pad wear.

Cleaning the hub face before installation is a simple but important step in achieving a consistent brake installation.

Final Installation Checklist

Before returning the vehicle to the customer, confirm that:

  • The correct rotor and pads have been installed
  • The hub face is clean
  • Rotor runout has been checked where required
  • Caliper hardware is correctly installed and torqued
  • The brake hose is secure and correctly positioned
  • The brake fluid has been checked
  • Lug nuts or wheel bolts have been tightened to the correct specification
  • The brake pedal feels firm
  • The vehicle has completed a controlled road test
  • The bedding procedure has been explained to the vehicle owner

For help finding the correct DBA brake rotor and pad application, use the DBA Part Finder.
