Improperly tightened wheel lug nuts can contribute to brake rotor distortion and Disc Thickness Variation, commonly known as DTV. These conditions may result in brake vibration, uneven wear and pedal pulsation.
Over-tightening lug nuts can apply uneven clamping force across the wheel, rotor and hub assembly. Over time, this may contribute to uneven rotor wear and changes in rotor thickness.
Correct wheel installation is an important part of maintaining smooth, consistent braking performance.
Why Proper Lug Nut Torque Matters
The brake rotor needs to sit flush against the hub, with the wheel secured using even clamping force across all lug nuts.
If lug nuts are tightened unevenly or beyond the vehicle manufacturer’s specifications, excessive stress can be placed on the wheel-end assembly. This may contribute to:
- Brake rotor distortion
- Disc Thickness Variation
- Brake vibration
- Pedal pulsation
- Uneven brake pad and rotor wear
- Damage to wheel studs or lug nuts
Impact wrenches can make wheel installation faster, but they can also exceed the recommended torque if they are not used correctly. Final tightening should always be completed with a calibrated torque wrench set to the vehicle manufacturer’s specified torque.
Best Practice for Lug Nut Tightening
The key rule is simple:
Apply even, controlled torque using the correct sequence and tools.
When installing a wheel:
- Always follow the vehicle manufacturer’s recommended torque specification.
- Use a star or criss-cross pattern to distribute clamping force evenly.
- Hand-tighten lug nuts before using a wrench.
- Avoid using an impact wrench for final tightening unless the manufacturer specifically permits it and the tool is properly controlled.
- Use a calibrated torque wrench for the final torque setting.
- Make sure the hub, rotor mounting surface and wheel contact surfaces are clean and free from rust, dirt and debris.
Torque specifications vary between vehicles, wheel types and applications. Never use a general torque figure in place of the specification listed in the vehicle owner’s manual or service information.
Step-by-Step Wheel Installation and Torque Process
Step 1: Prepare the Vehicle
Park the vehicle on a flat, stable surface. Engage the parking brake and turn off the engine.
Loosen the lug nuts slightly before raising the vehicle. Do not remove them completely while the vehicle is on the ground.
Step 2: Lift and Secure the Vehicle
Use the correct jacking points outlined in the vehicle owner’s manual.
Raise the vehicle and support it securely using appropriately rated jack stands. Never work underneath a vehicle supported only by a jack.
Step 3: Prepare the Mounting Surfaces
Before installing the wheel, inspect the hub, rotor mounting face and wheel contact surface.
Remove rust, dirt, scale and other debris that could prevent the rotor and wheel from sitting flush against the hub. Do not apply grease or anti-seize to the wheel studs or lug nut threads unless specifically instructed by the vehicle manufacturer.
Step 4: Mount the Wheel
Position the wheel onto the hub and make sure it is seated correctly.
Install the lug nuts by hand and tighten them until snug. This helps prevent cross-threading and allows the wheel to seat correctly.
Step 5: Initial Tightening
Lightly tighten the lug nuts in a star or criss-cross pattern.
This sequence helps center the wheel and distribute the initial clamping force evenly.
Step 6: Lower the Vehicle
Lower the vehicle until the tire makes light contact with the ground and the wheel is prevented from turning.
Do not place the full weight of the vehicle on the wheel until the lug nuts have been tightened to specification.

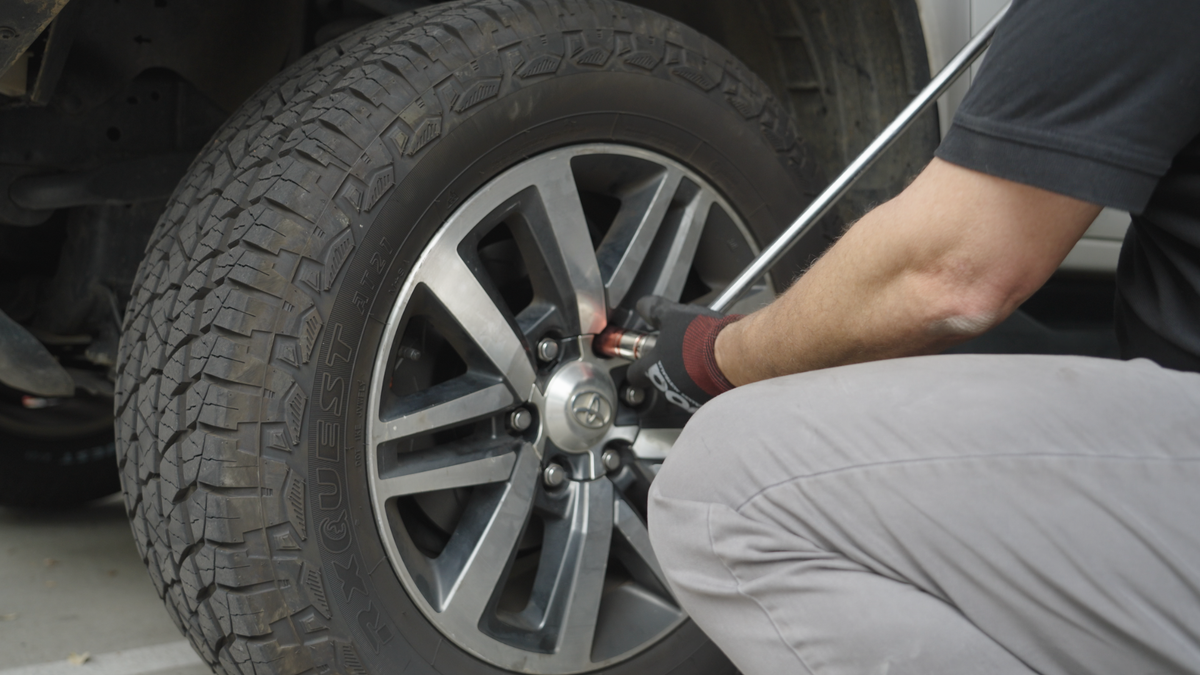

Step 7: Apply Final Torque
Set a calibrated torque wrench to the vehicle manufacturer’s recommended specification.
Tighten the lug nuts in a star or criss-cross pattern until the correct torque is achieved. Avoid applying additional force after the wrench reaches the specified setting.
Step 8: Recheck the Torque
After driving approximately 50 miles, or according to the vehicle manufacturer’s recommendation, recheck the lug nut torque.
This is particularly important after a wheel installation, tire change, brake service or other work involving the wheel-end assembly.
Tools Required
- Calibrated torque wrench
- Correct-size wheel socket or lug nut socket
- Wheel wrench or hand tool
- Jack and appropriately rated jack stands
- Safety gloves and safety glasses
- Wire brush or suitable cleaning tool for removing rust and debris
Common Lug Nut Torque Mistakes
Over-Tightening Lug Nuts
Excessive torque can place uneven stress on the wheel, rotor, hub and wheel studs. It may also make future wheel removal difficult and increase the risk of damaged components.
Ignoring Torque Specifications
Each vehicle has its own recommended torque specification. Incorrect torque can result in uneven clamping force and may create safety concerns.
Using an Impact Wrench for Final Tightening
An impact wrench can apply more torque than intended, particularly when used without proper control. Use it only in accordance with the tool and vehicle manufacturer’s recommendations, and complete final tightening with a calibrated torque wrench.
Using the Wrong Tightening Sequence
Failing to use a star or criss-cross pattern can cause the wheel to seat unevenly against the hub.
Installing a Wheel on Dirty or Corroded Surfaces
Rust, scale or debris between the hub, rotor and wheel can prevent the components from sitting flush. This may contribute to runout, vibration and uneven loading.
Applying Lubricant to Lug Nut Threads
Lubricating the threads can change the relationship between torque and clamping force. Only lubricate lug nut threads if specifically directed by the vehicle manufacturer.
Why Correct Installation Matters
Even a high-quality brake rotor can be affected by incorrect wheel installation.
Correct lug nut torque helps maintain even clamping force across the wheel-end assembly and supports proper rotor-to-hub seating. It is an important part of preventing installation-related vibration, uneven wear and Disc Thickness Variation.
If you are experiencing brake vibration, uneven wear or pedal pulsation, improper lug nut torque, contaminated mounting surfaces or excessive runout may be contributing factors. A qualified technician should inspect the complete wheel-end and braking system before replacing components.
Pro Tip
Always clean the hub face before installing a brake rotor or wheel, follow the vehicle manufacturer’s torque specification and use a calibrated torque wrench for final tightening.
Proper installation is just as important as the quality of the brake components themselves.
