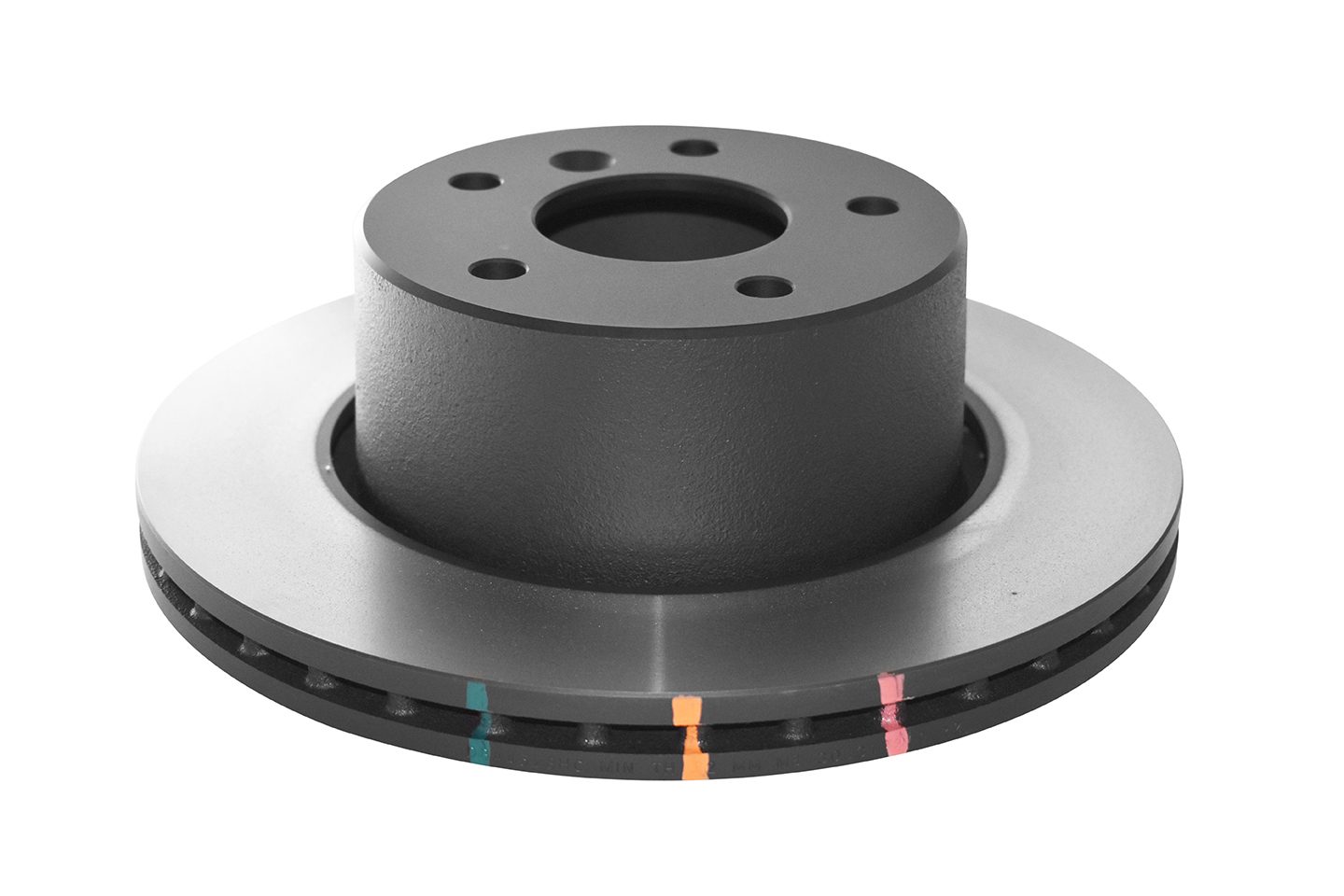

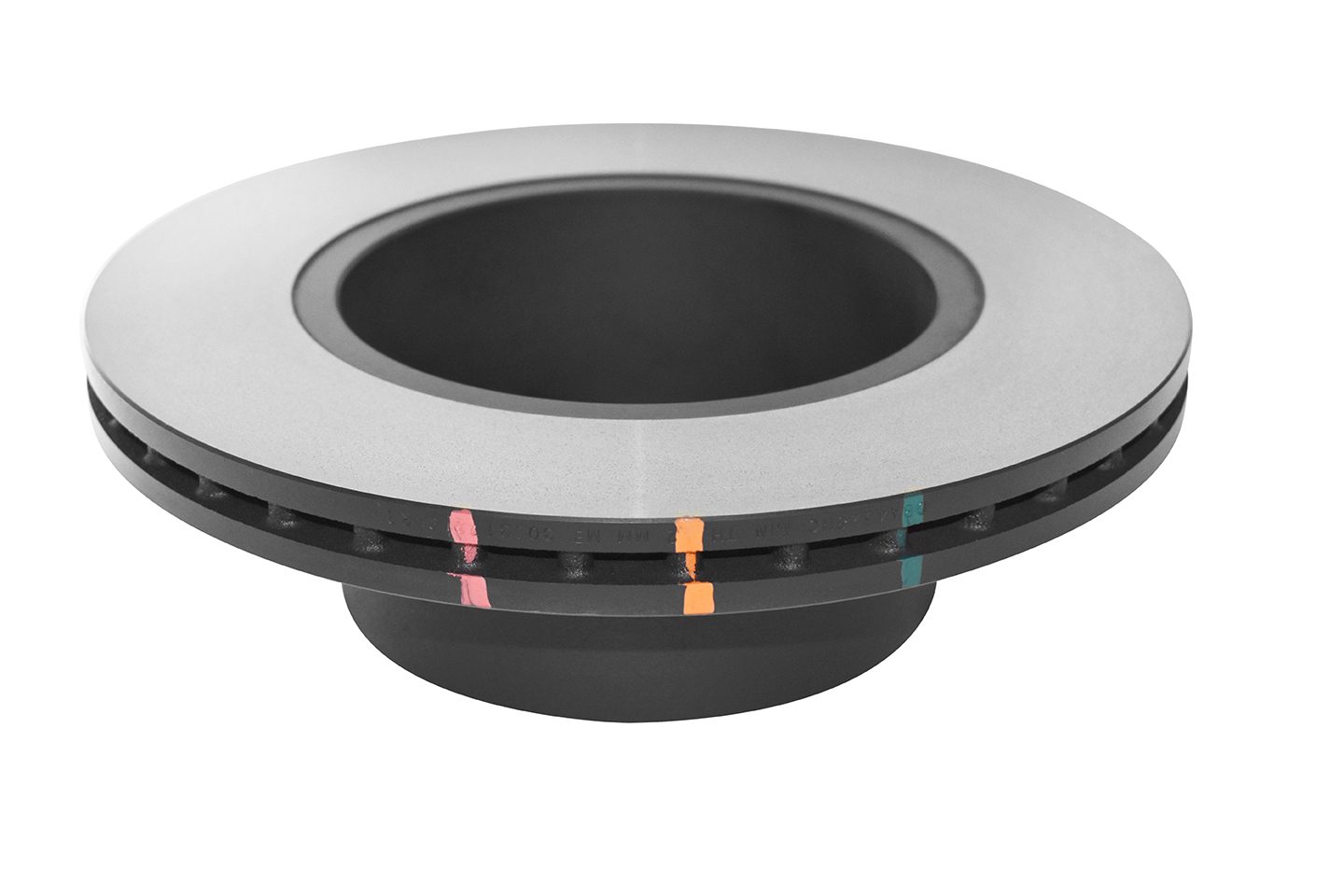

Front 4000 Series HD Brake Rotor
Front 4000 Series HD Brake Rotor
Front 4000 Series HD Brake Rotor
Front 4000 Series HD Brake Rotor

Front 4000 Series HD Brake Rotor

Sku
    DBA4528
Diameter (mm):
    297
Axle:
    Front
Per Car Qty Required
    2

4000 SERIES HD variant features a smooth OE style rotor finish, popular for drivers looking for the benefits of a 4000 Series rotor but requiring an OE style look, such as controlled race divisions.

4000 SERIES HD part numbers are not denoted by any part number suffix.

Where To Buy

Technical Specs

Axle
    Front
Vane Design
    KP Vents
Outer diameter[mm]
    297
Height [mm]
    91.5
Brake Disc Thickness [mm]
    25
Minimum Thickness [mm]
    22
Centering Diameter [mm]
    70
Number of Holes
    5
Number of Holes
    5
Pitch Circle Diameter [mm]
    120
Surface Design
    Plain

Package Specs

Technical Specs:

AxleFront
Vane DesignR KP Vents
Outer diameter[mm]297
Height [mm]91.5
Brake Disc Thickness [mm]25
Minimum Thickness [mm]22
Centering Diameter [mm]70
Number of Holes5
Weight [kg]9.12
Pitch Circle Diameter [mm]120
Surface DesignPlain
