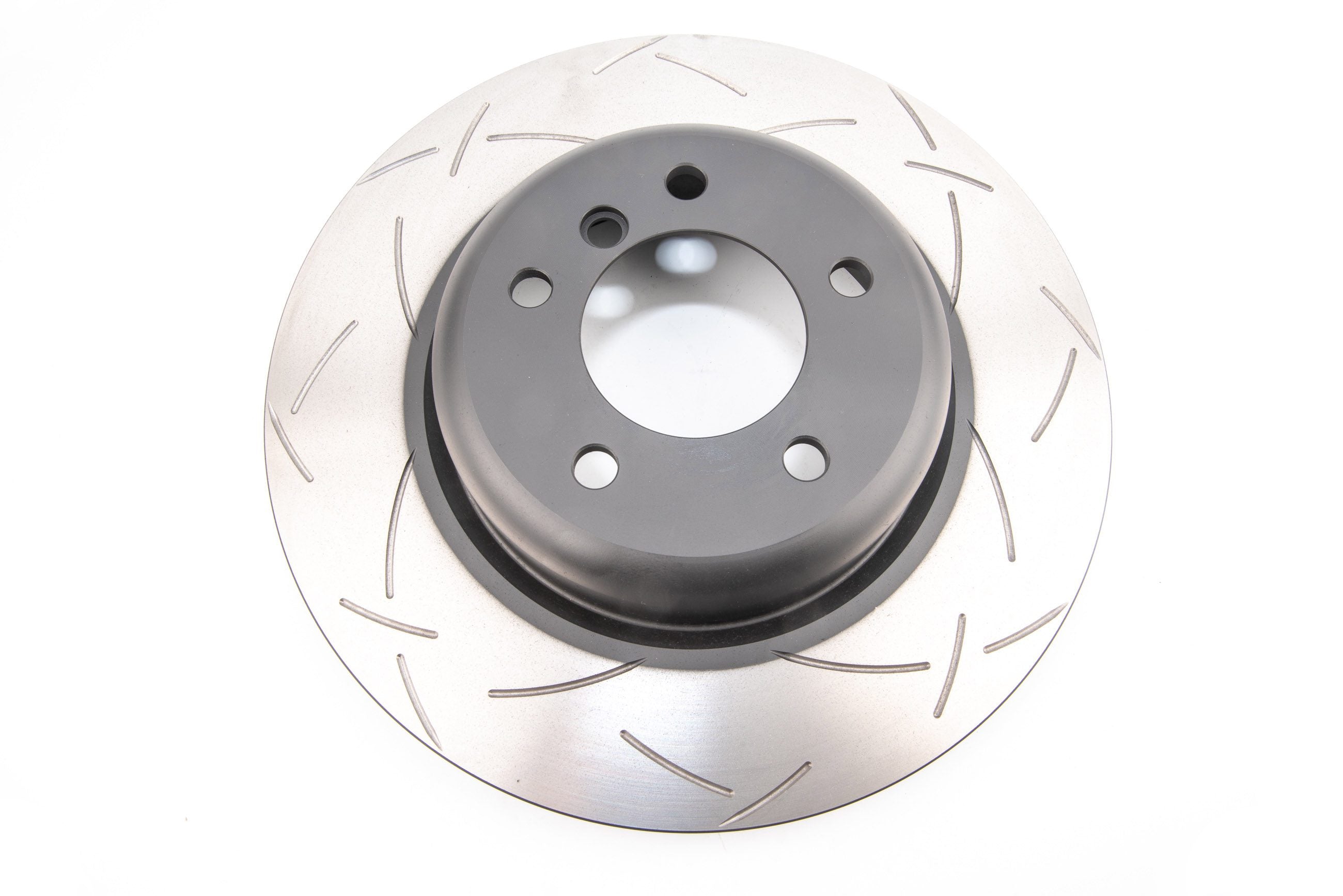

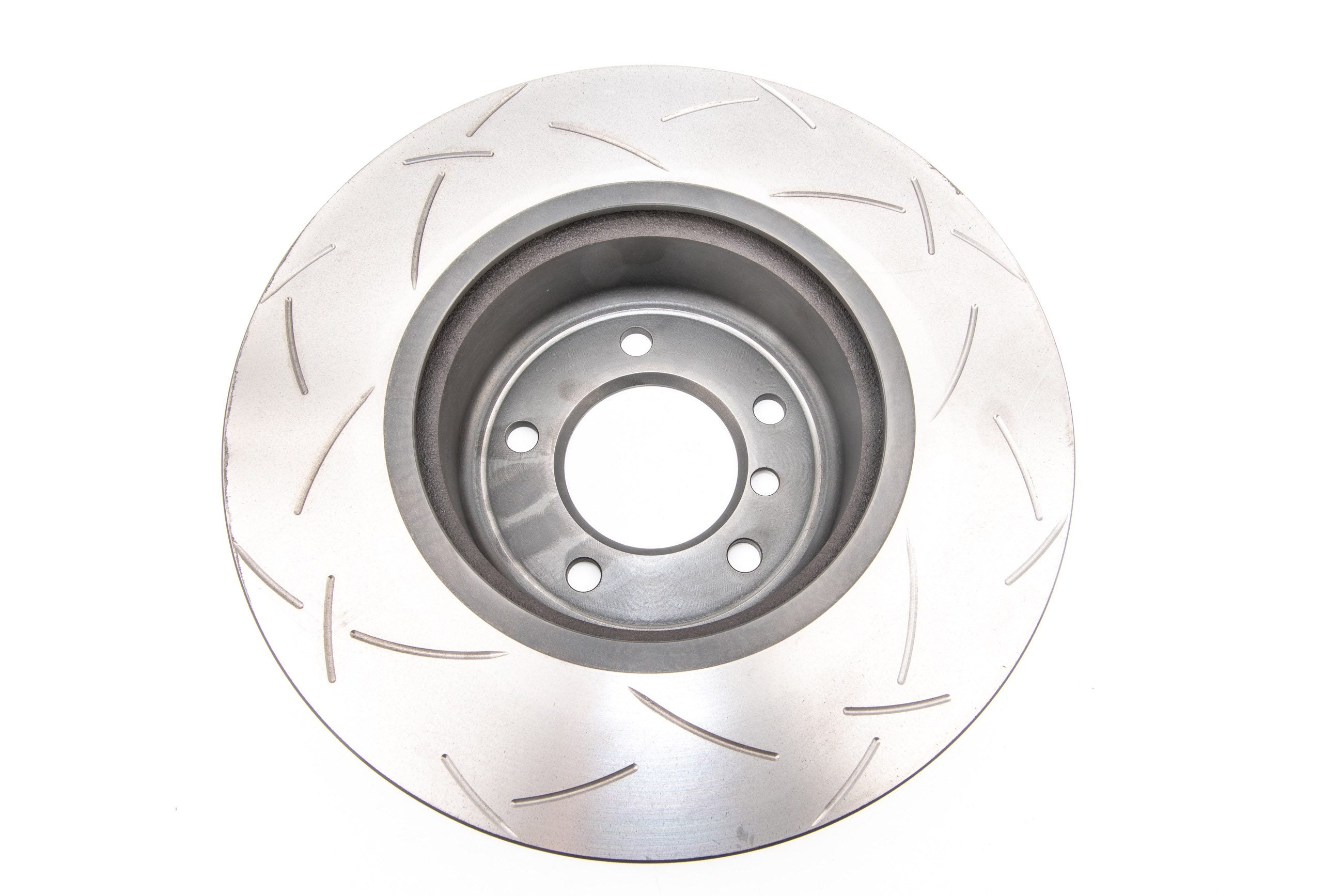

Front 4000 Series T3 Brake Rotor
Front 4000 Series T3 Brake Rotor
Front 4000 Series T3 Brake Rotor
Front 4000 Series T3 Brake Rotor

Front 4000 Series T3 Brake Rotor

Sku
    DBA42883S
Diameter (mm):
    338
Axle:
    Front
Per Car Qty Required
    2

4000 SERIES T3 is the ultimate in direct replacement single piece performance brake rotors Featuring all the benefits of the 4000 Series plus DBA’s patented world renowned T3 bi directional slot design.

Built on the foundations of DBA’s T2 slot, the T3 slot design features additional, precise, CNC machined tri symmetrical slots, resulting in an even quieter, more responsive and smoother brake pedal feel The T3 slot increases the number of exit points for brake pad friction dust and gases to escape through, further increasing the consistency and effectiveness of every brake stop.

We recommend a T3 slot for high performance and heavy off-roading applications.

Where To Buy

Technical Specs

Axle
    Front
Vane Design
    KP Vents
Outer diameter[mm]
    338
Height [mm]
    73
Brake Disc Thickness [mm]
    26
Minimum Thickness [mm]
    24.4
Centering Diameter [mm]
    79
Number of Holes
    5
Number of Holes
    5
Pitch Circle Diameter [mm]
    120
Surface Design
    Slotted

Package Specs

Technical Specs:

AxleFront
Vane DesignR KP Vents
Outer diameter[mm]338
Height [mm]73
Brake Disc Thickness [mm]26
Minimum Thickness [mm]24.4
Centering Diameter [mm]79
Number of Holes5
Weight [kg]10.3
Pitch Circle Diameter [mm]120
Surface DesignSlotted
