Front 4000 Series XD Brake Rotor
Front 4000 Series XD Brake Rotor

Front 4000 Series XD Brake Rotor

Sku
    DBA43050XD-10
Diameter (mm):
    340
Axle:
    Front
Per Car Qty Required
    2

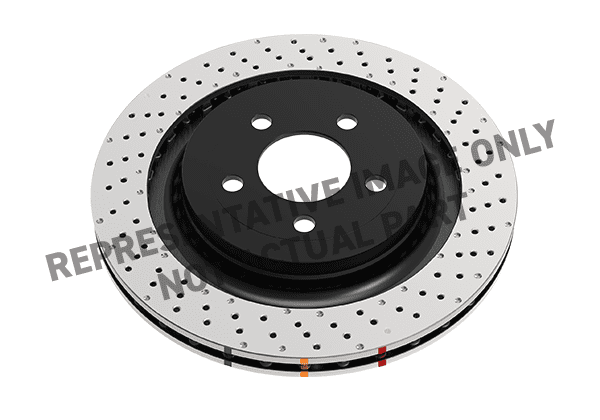

4000 SERIES XD features DBA’s non directional cross drilled and dimpled rotor design.

The XD finish provides additional cooling benefits above the HD spec, along with enhanced sports aesthetics.

The mix of dimples and drilled holes provides enhanced rotor structural support above transitional cross drilled techniques.

Drilled rotor configurations are not recommended for heavy off-road or track day usage.

Where To Buy

Technical Specs

Axle
    Front
Vane Design
    KP Vents
Outer diameter[mm]
    340
Height [mm]
    53
Brake Disc Thickness [mm]
    30
Minimum Thickness [mm]
    28
Centering Diameter [mm]
    58.02
Number of Holes
    10
Number of Holes
    10
Pitch Circle Diameter [mm]
    100 & 114.3
Surface Design
    Cross Drilled/ Dimpled

Package Specs

Technical Specs:

AxleFront
Vane DesignR KP Vents
Outer diameter[mm]340
Height [mm]53
Brake Disc Thickness [mm]30
Minimum Thickness [mm]28
Centering Diameter [mm]58.02
Number of Holes10
Weight [kg]10.82
Pitch Circle Diameter [mm]100 & 114.3
Surface DesignCross Drilled/ Dimpled
