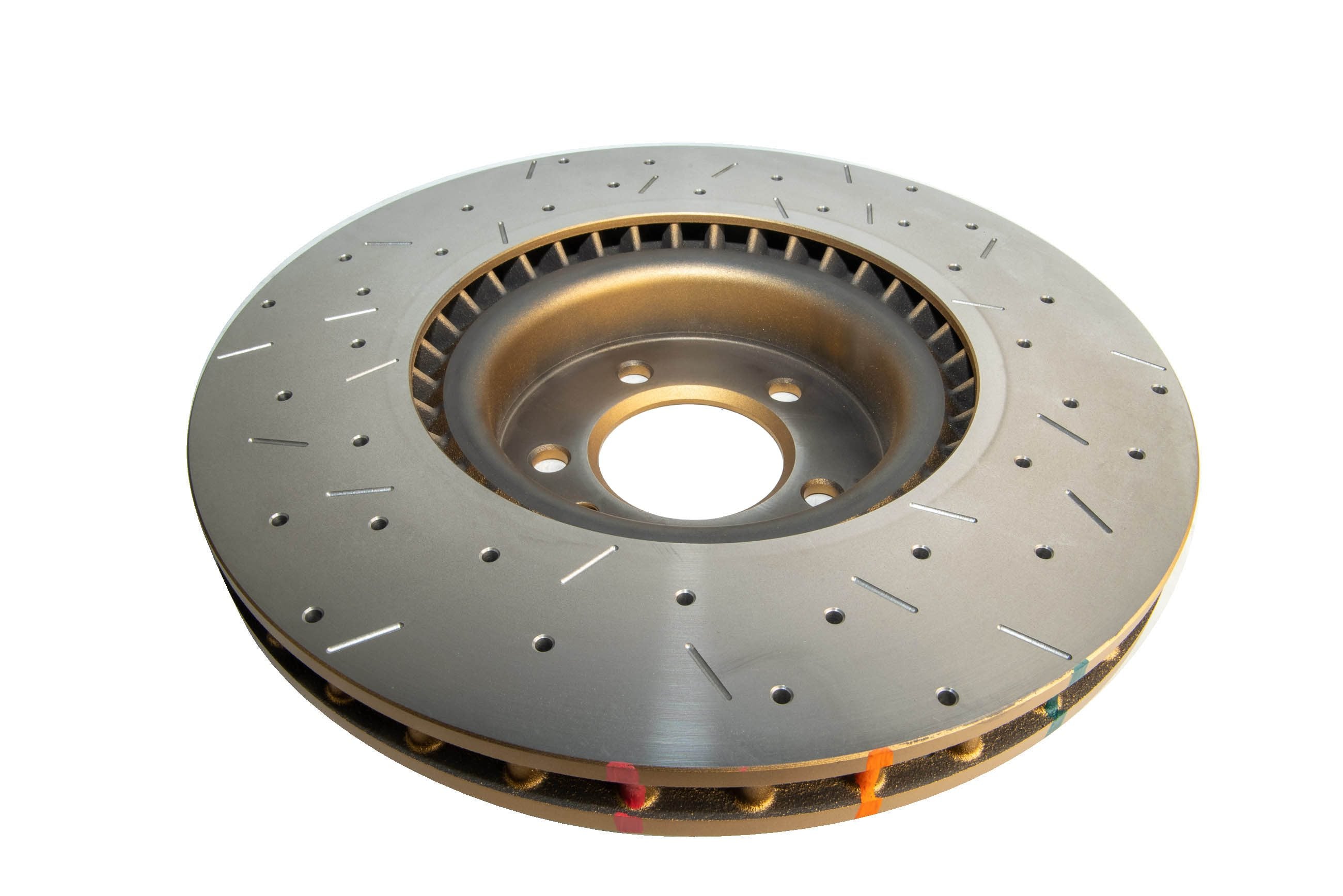

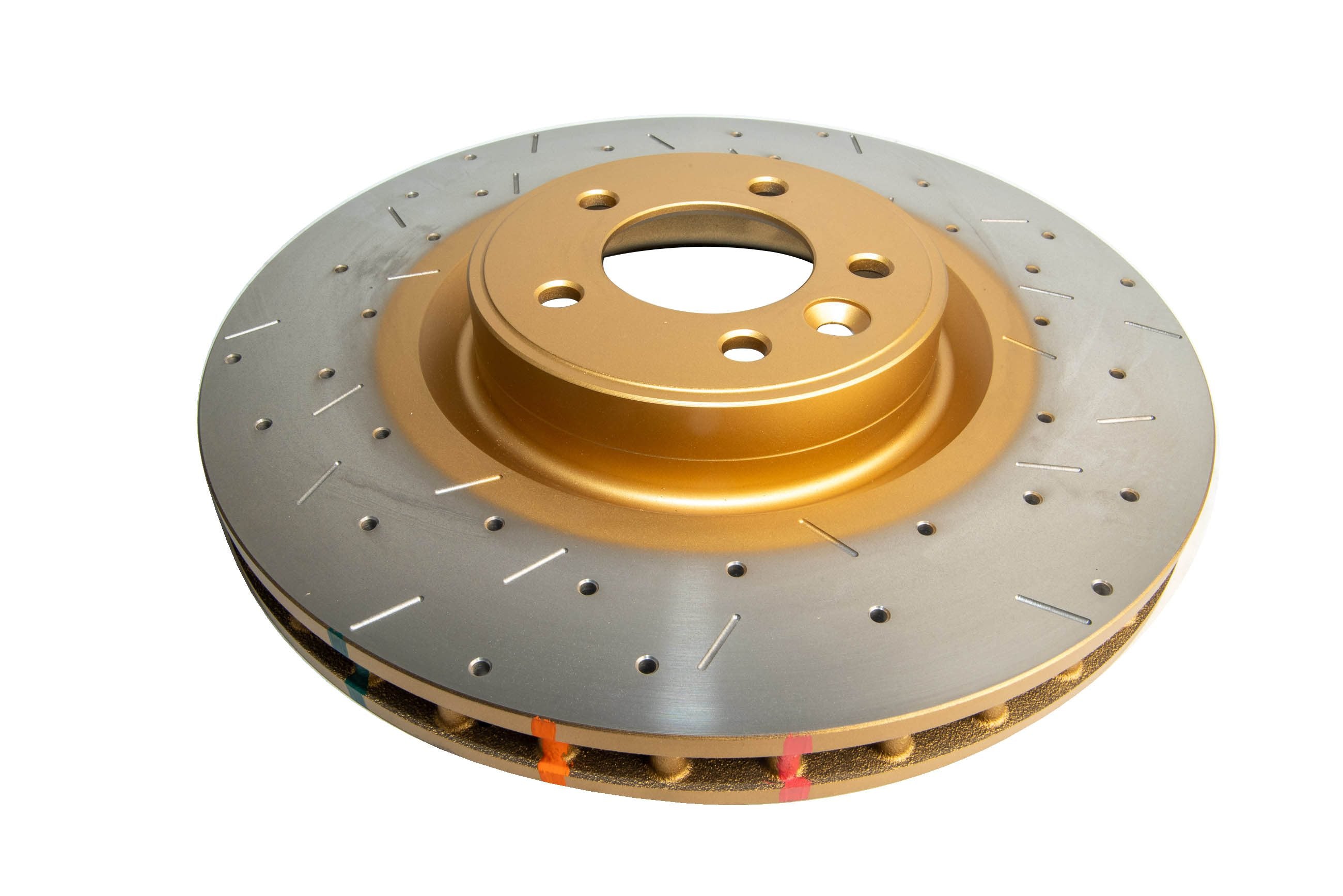

Front 4000 Series XS Gold Brake Rotor
Front 4000 Series XS Gold Brake Rotor
Front 4000 Series XS Gold Brake Rotor
Front 4000 Series XS Gold Brake Rotor

Front 4000 Series XS Gold Brake Rotor

Sku
    DBA43090XS
Diameter (mm):
    380
Axle:
    Front
Per Car Qty Required
    2

4000 SERIES XS Gold provides all the benefits of 4000 Series, with a premium non directional cross drilled and slotted design, plus an attractive gold finish on the rotor hub.

The introduction of our unique cross drilled and slotted design increases the number of exit points, allowing more brake pad friction dust and gases to escape through both the cross drilled holes and slots, resulting in better braking performance.

While providing a similar performance benefit to the T3 slot, the XS Gold is a popular alternative for show cars.

Drilled rotor configurations are not recommended for heavy off-road or track day usage.

Where To Buy

Technical Specs

Axle
    Front
Vane Design
    Pillar Post Vents
Outer diameter[mm]
    380
Height [mm]
    61.9
Brake Disc Thickness [mm]
    34
Minimum Thickness [mm]
    31
Centering Diameter [mm]
    79
Number of Holes
    5
Number of Holes
    5
Pitch Circle Diameter [mm]
    120
Surface Design
    Cross Drilled/ Slotted

Package Specs

Technical Specs:

AxleFront
Vane DesignR Pillar Post Vents
Outer diameter[mm]380
Height [mm]61.9
Brake Disc Thickness [mm]34
Minimum Thickness [mm]31
Centering Diameter [mm]79
Number of Holes5
Weight [kg]15.54
Pitch Circle Diameter [mm]120
Surface DesignCross Drilled/ Slotted
