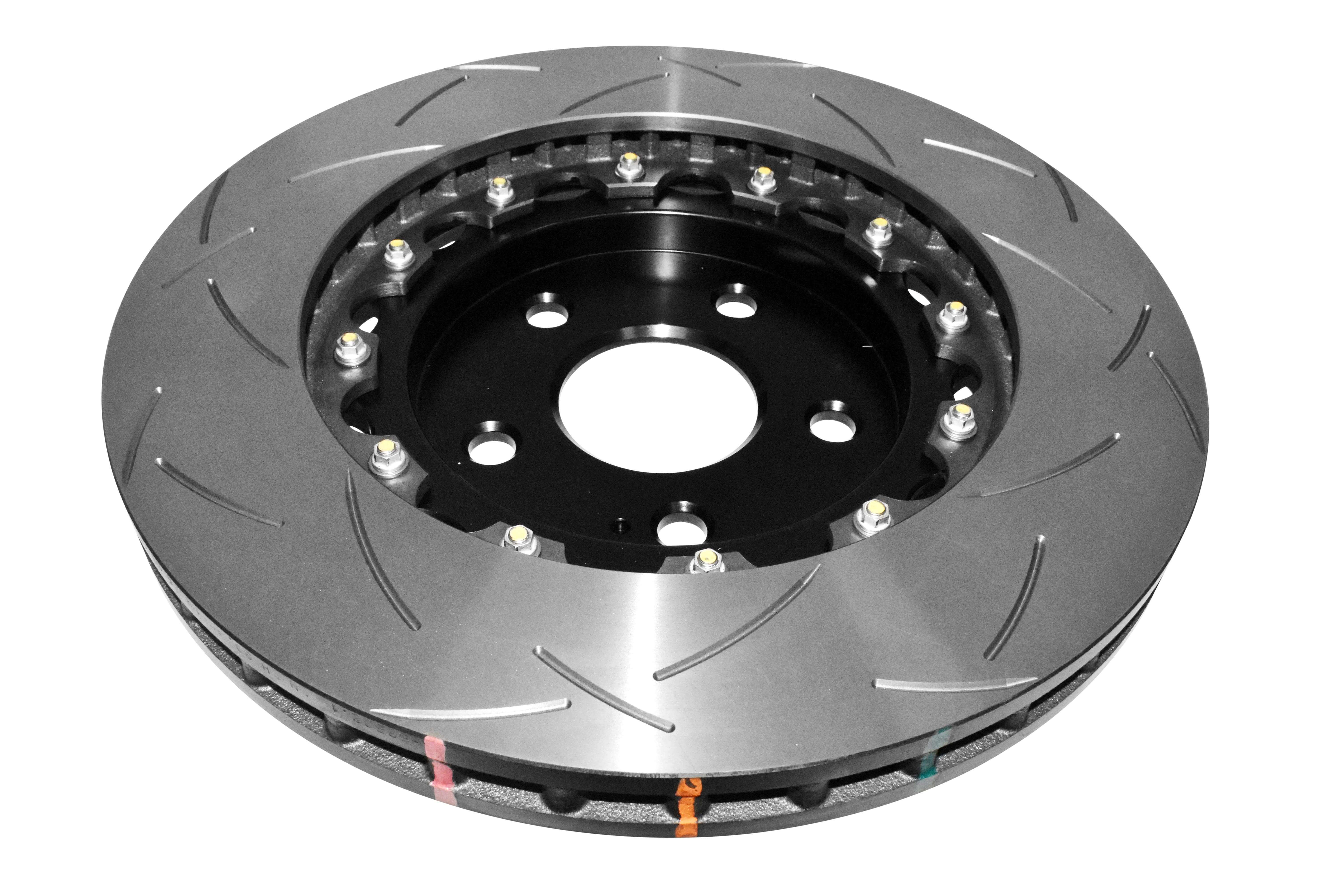

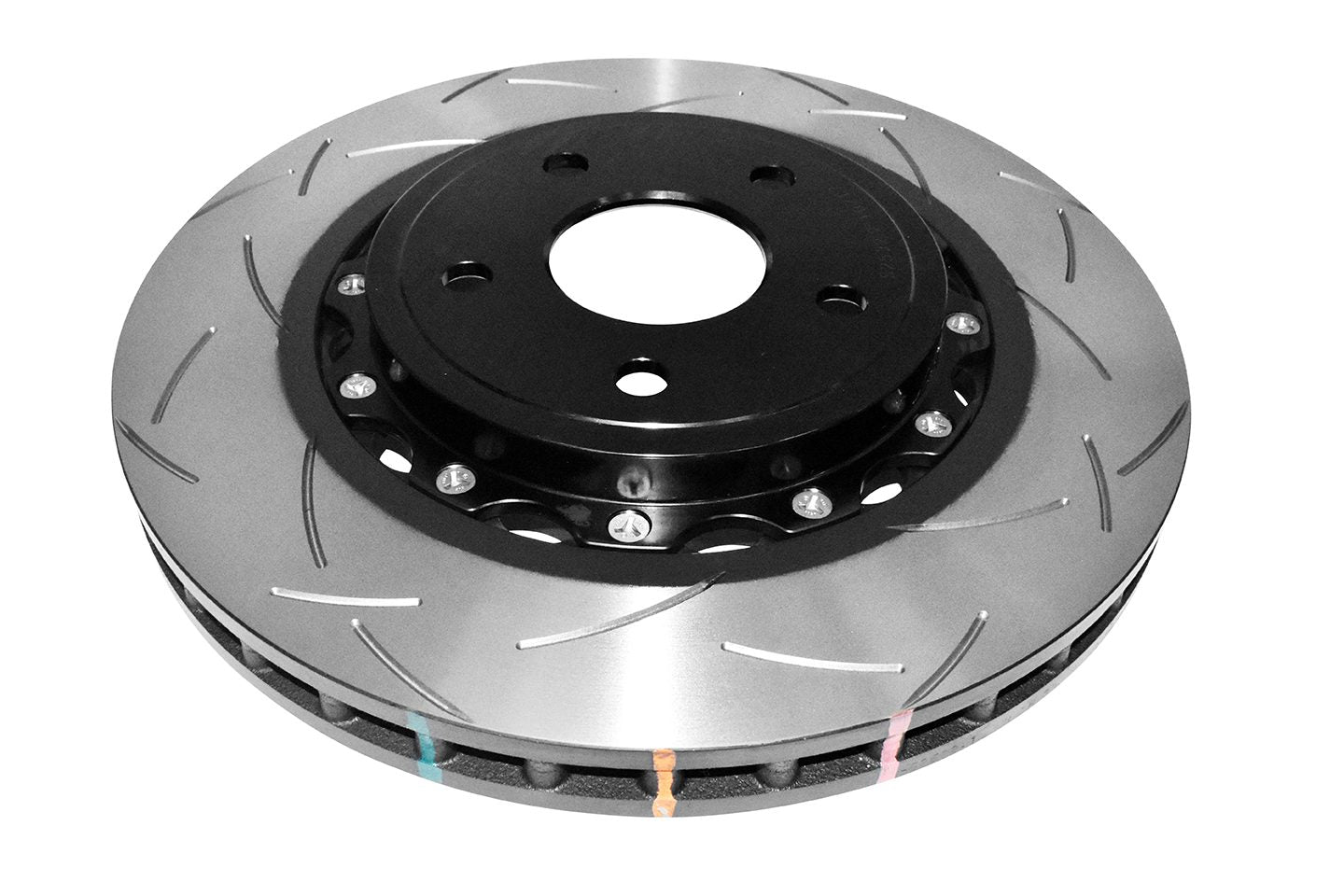

Front 5000 Series T3 Brake Rotor
Front 5000 Series T3 Brake Rotor
Front 5000 Series T3 Brake Rotor
Front 5000 Series T3 Brake Rotor

Front 5000 Series T3 Brake Rotor

Sku
    DBA52532BLKS
Diameter (mm):
    360
Axle:
    Front
Per Car Qty Required
    2

5000 Series T3 is the ultimate in direct replacement 2 piece performance brake rotors Featuring all the benefits of the 5000 Series along with DBA’s patented world renowned T3 bi directional slot design.

Built on the foundations of DBA’s T 2 slot, the T 3 slot design features additional precise CNC machined tri symmetrical slots, resulting in an even quieter, more responsive and smoother braking experience. The T3 slot increases the number of exit points for brake pad friction dust and gases to escape through, further increasing the consistency and effectiveness of every brake stop.

DBA recommends a T3 slot for high performance applications.

T3 rotors are denoted by the suffix (S) in 5000 Series part numbers.

Where To Buy

Technical Specs

Axle
    Front
Vane Design
    KP Vents
Outer diameter[mm]
    360
Height [mm]
    53
Brake Disc Thickness [mm]
    32
Minimum Thickness [mm]
    30
Centering Diameter [mm]
    72.02
Number of Holes
    5
Number of Holes
    5
Pitch Circle Diameter [mm]
    127
Surface Design
    Slotted

Package Specs

Technical Specs:

AxleFront
Vane DesignR KP Vents
Outer diameter[mm]360
Height [mm]53
Brake Disc Thickness [mm]32
Minimum Thickness [mm]30
Centering Diameter [mm]72.02
Number of Holes5
Weight [kg]10.62
Pitch Circle Diameter [mm]127
Surface DesignSlotted
