Front 5000 Series XD Brake Rotor
Front 5000 Series XD Brake Rotor

Front 5000 Series XD Brake Rotor

Sku
    DBA52068BLKRXD
Diameter (mm):
    390
Axle:
    Front
Per Car Qty Required
    1

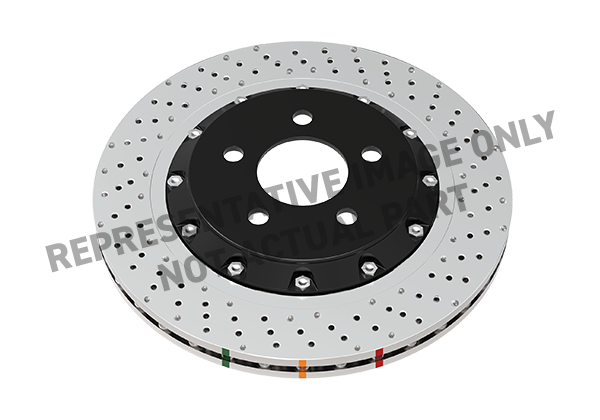

5000 Series XD features non directional cross drilled and dimpled design. The XD finish provides cooling benefits above the HD finish along with enhanced sports aesthetics.

XD utilises a mix of dimples and drilled holes to provide enhanced structural support above transitional cross drilled techniques.

We don’t recommend XD rotors for track use.

XD rotors are denoted by the suffix (XD) in 5000 Series part numbers.

Where To Buy

Technical Specs

Axle
    Front
Vane Design
    Curved Vents
Outer diameter[mm]
    390
Height [mm]
    54.1
Brake Disc Thickness [mm]
    35.6
Minimum Thickness [mm]
    33.6
Centering Diameter [mm]
    67.42
Number of Holes
    5
Number of Holes
    5
Pitch Circle Diameter [mm]
    120
Surface Design
    Cross Drilled/ Dimpled

Package Specs

Technical Specs:

AxleFront
Vane DesignR Curved Vents
Outer diameter[mm]390
Height [mm]54.1
Brake Disc Thickness [mm]35.6
Minimum Thickness [mm]33.6
Centering Diameter [mm]67.42
Number of Holes5
Weight [kg]14.4
Pitch Circle Diameter [mm]120
Surface DesignCross Drilled/ Dimpled
