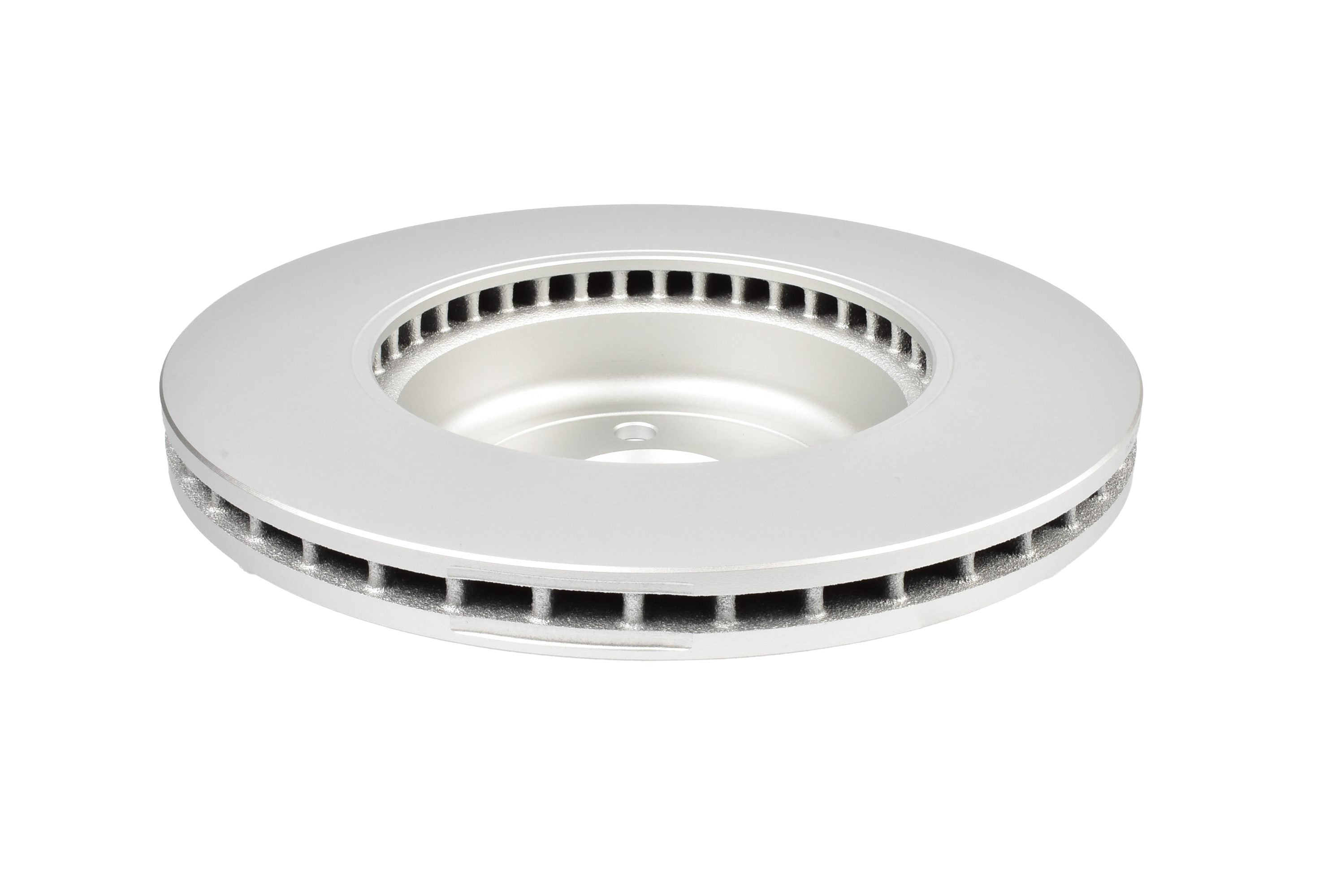

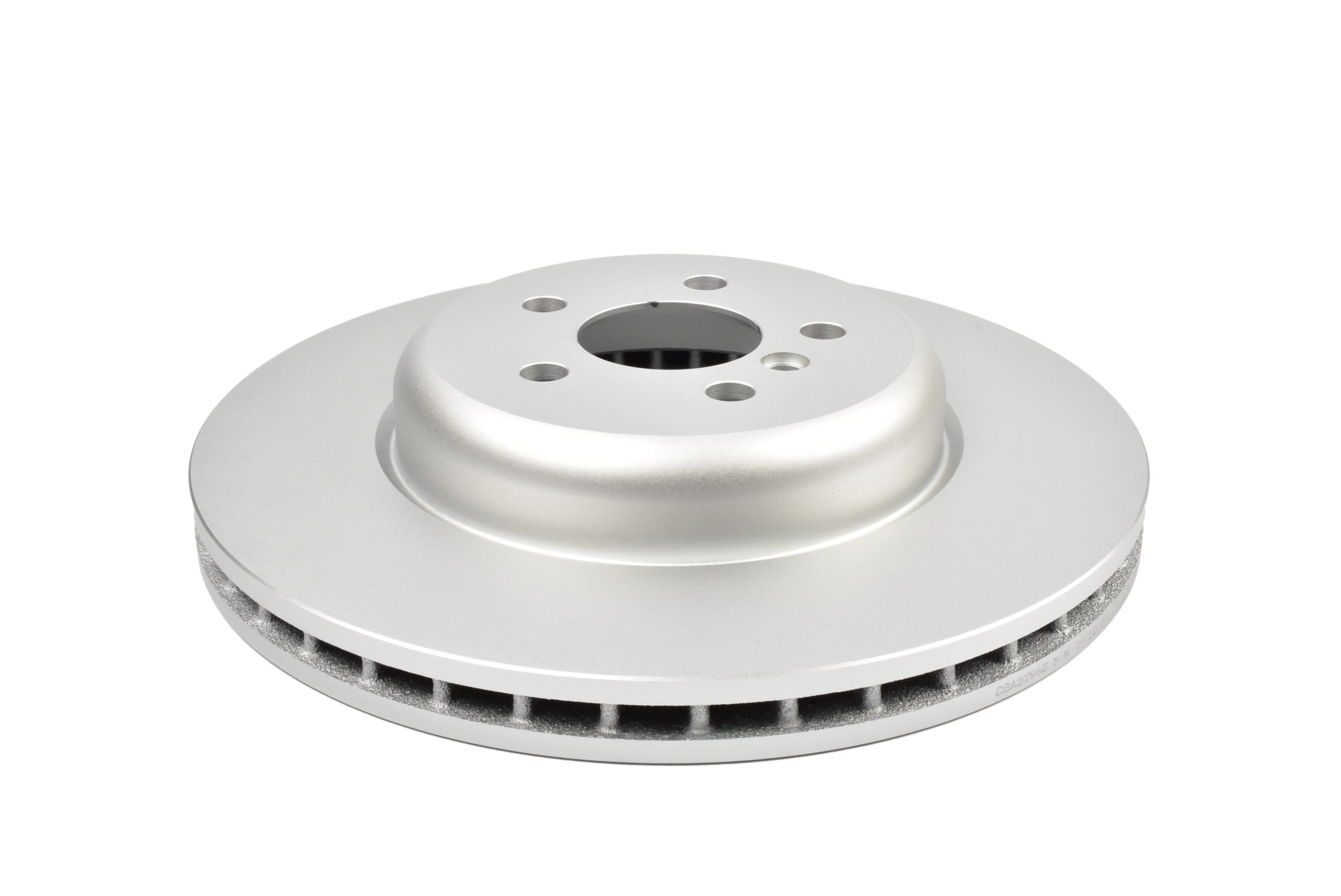

Front Street Series En-shield Brake Rotor
Front Street Series En-shield Brake Rotor
Front Street Series En-shield Brake Rotor
Front Street Series En-shield Brake Rotor

Front Street Series En-shield Brake Rotor

Sku
    DBA3796E
Diameter (mm):
    348
Axle:
    Front
Per Car Qty Required
    2

EnShield technology has been introduced to the Street Series range to provide corrosions resistant rotors, keeping the rotors looking good throughout service life.

The EnShield process begins with a zinc/aluminium water based coating being applied to the entire rotor surface and is then
baked on.

EnShield rotors are denoted by the suffix (E) in Street Series part numbers.

Where To Buy

Technical Specs

Axle
    Front
Vane Design
    OE Vents
Outer diameter[mm]
    348
Height [mm]
    66.2
Brake Disc Thickness [mm]
    30
Minimum Thickness [mm]
    28.4
Centering Diameter [mm]
    67
Number of Holes
    5
Number of Holes
    5
Pitch Circle Diameter [mm]
    112
Surface Design
    Plain

Package Specs

Technical Specs:

AxleFront
Vane DesignR OE Vents
Outer diameter[mm]348
Height [mm]66.2
Brake Disc Thickness [mm]30
Minimum Thickness [mm]28.4
Centering Diameter [mm]67
Number of Holes5
Weight [kg]12.25
Pitch Circle Diameter [mm]112
Surface DesignPlain
