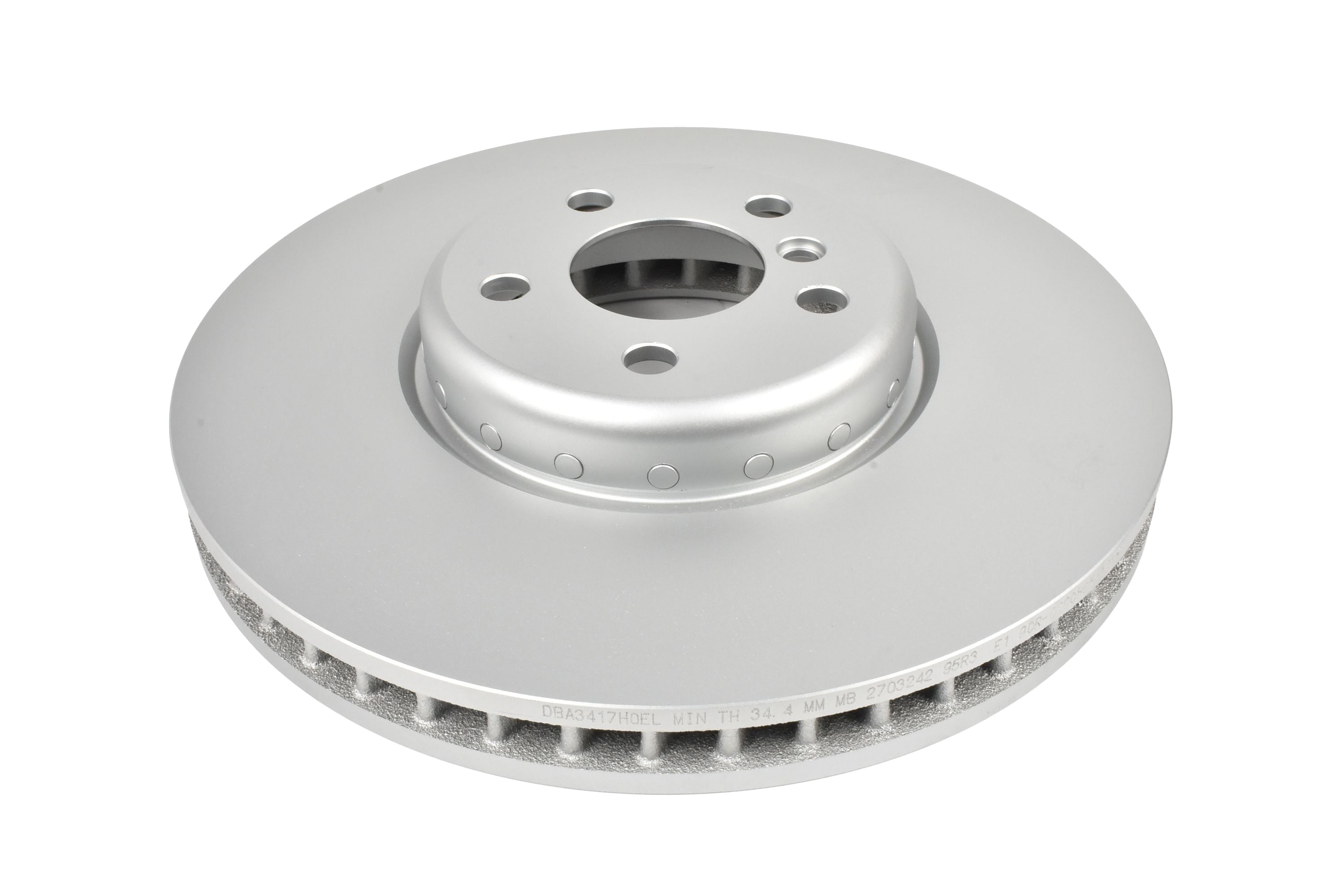

Front Street Series HC Brake Rotor
Front Street Series HC Brake Rotor

Front Street Series HC Brake Rotor

Sku
    DBA3417HOEL
Diameter (mm):
    348
Axle:
    Front
Per Car Qty Required
    1

Adopting the two-piece OEM design, DBA offers its own version of a Hybrid Composite (HC) rotor, composed of a cast iron braking surface (disc ring) and an aluminium or steel hat, which are permanently bonded together by a series of rivets or through co-casting. The rotor features DBA’s own iron composition for enhancement. Its two-piece design may reduce the overall weight by up to 15% compared with a conventional one-piece rotor. Full R90 certification provides additional peace of mind.

The Street Series Hybrid Rotor range offers an attractive replacement alternative to owners of mainly high-end European vehicles.

Hybrid rotors are denoted by the suffix (HOE) in Street Series part numbers.

Where To Buy

Technical Specs

Axle
    Front
Vane Design
    Curved Vents
Outer diameter[mm]
    348
Height [mm]
    66.2
Brake Disc Thickness [mm]
    36
Minimum Thickness [mm]
    34.4
Centering Diameter [mm]
    67
Number of Holes
    5
Number of Holes
    5
Pitch Circle Diameter [mm]
    112
Surface Design
    Cross Drilled/ Dimpled

Package Specs

Technical Specs:

AxleFront
Vane DesignR Curved Vents
Outer diameter[mm]348
Height [mm]66.2
Brake Disc Thickness [mm]36
Minimum Thickness [mm]34.4
Centering Diameter [mm]67
Number of Holes5
Weight [kg]12.9
Pitch Circle Diameter [mm]112
Surface DesignCross Drilled/ Dimpled
