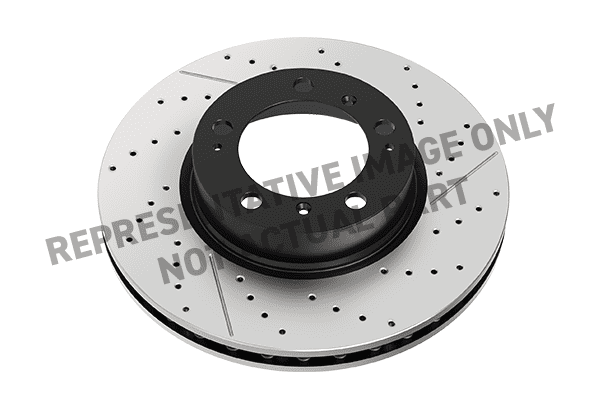

Front Street Series OEX Brake Rotor
Front Street Series OEX Brake Rotor

Front Street Series OEX Brake Rotor

Sku
    DBA3698OEXR
Diameter (mm):
    314.7
Axle:
    Front
Per Car Qty Required
    2

Street Series OEX rotors are designed for European vehicle applications, being OEM compatible replacement rotors.

Incorporating OE style cross drill patterns, slotted and cross drill patterns and/or OE slotted, cross drilled and dimpled designs.

Products can be designated at left or right-hand fitment depending upon vent design, drilling and slot configuration.

The DBA Street Series OEX rotors are bench marked for usage with DBA Street Series brake pads or DBA Street Performance brake pads.

Where To Buy

Technical Specs

Axle
    Front
Vane Design
    Curved Vents
Outer diameter[mm]
    314.7
Height [mm]
    69.4
Brake Disc Thickness [mm]
    28
Minimum Thickness [mm]
    26
Centering Diameter [mm]
    98
Number of Holes
    5
Number of Holes
    5
Pitch Circle Diameter [mm]
    130.5
Surface Design
    Plain

Package Specs

Technical Specs:

AxleFront
Vane DesignR Curved Vents
Outer diameter[mm]314.7
Height [mm]69.4
Brake Disc Thickness [mm]28
Minimum Thickness [mm]26
Centering Diameter [mm]98
Number of Holes5
Weight [kg]8.2
Pitch Circle Diameter [mm]130.5
Surface DesignPlain
