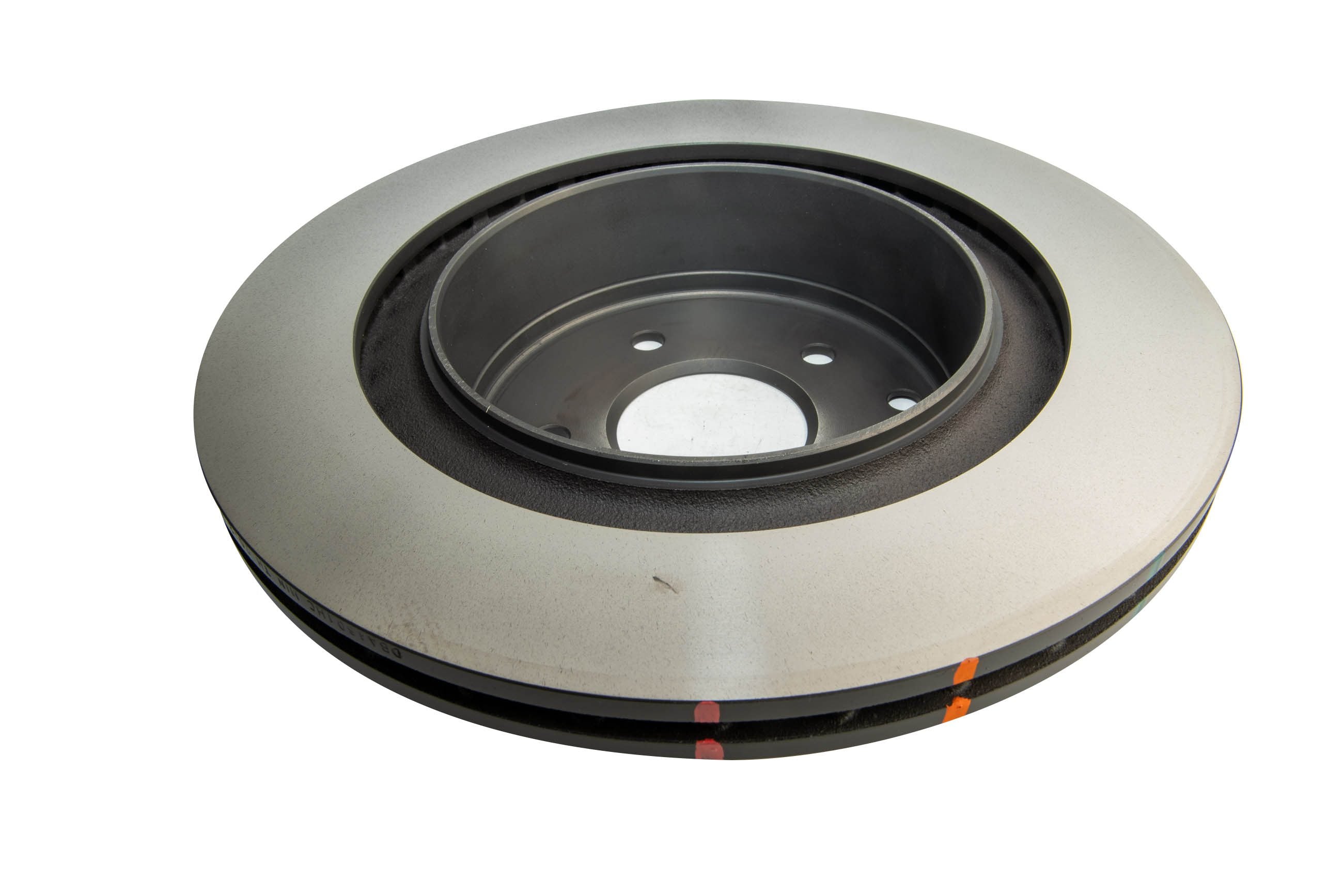

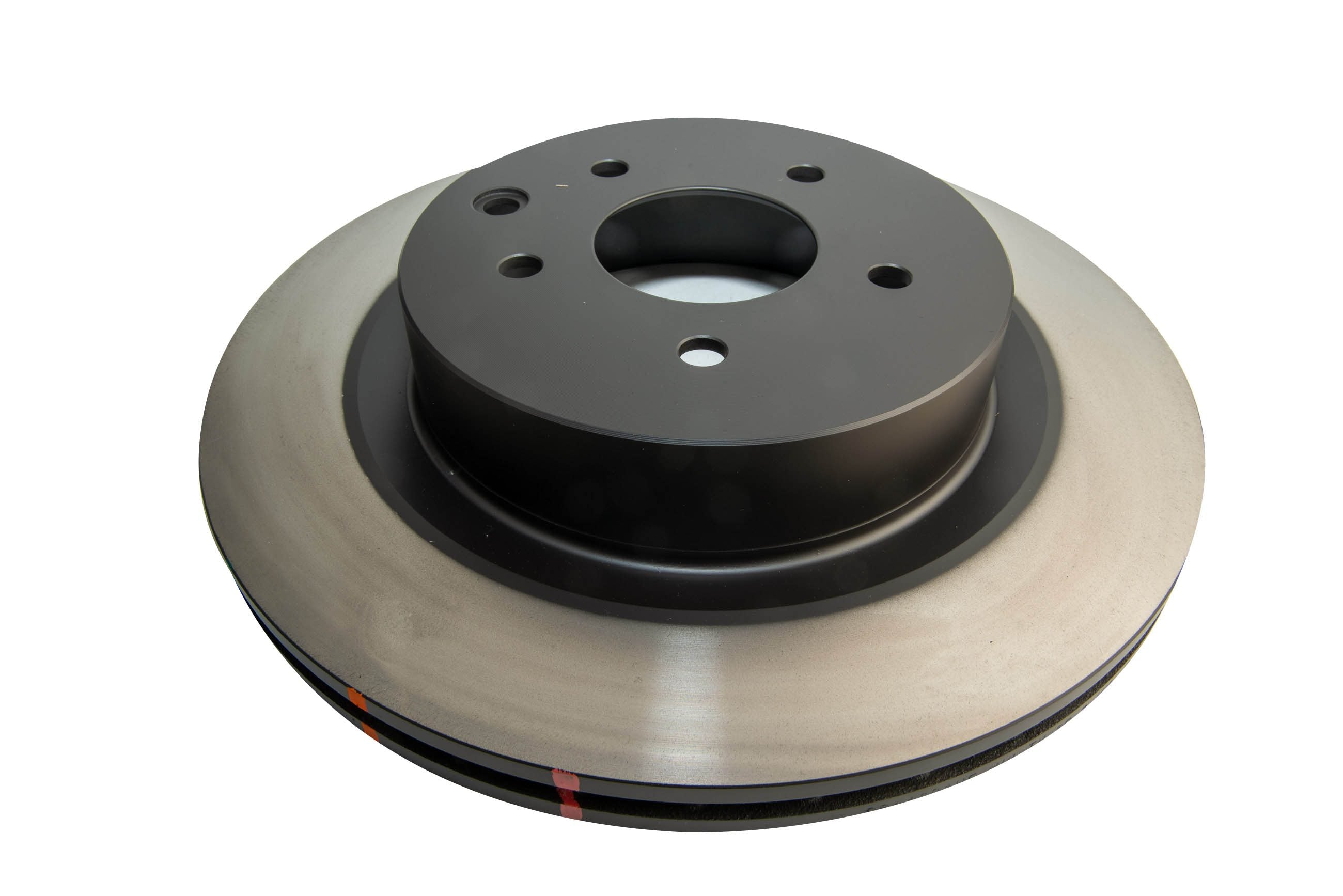

Rear 4000 Series HD Brake Rotor
Rear 4000 Series HD Brake Rotor
Rear 4000 Series HD Brake Rotor
Rear 4000 Series HD Brake Rotor

Rear 4000 Series HD Brake Rotor

Sku
    DBA4601
Diameter (mm):
    322
Axle:
    Rear
Per Car Qty Required
    2

4000 SERIES HD variant features a smooth OE style rotor finish, popular for drivers looking for the benefits of a 4000 Series rotor but requiring an OE style look, such as controlled race divisions.

4000 SERIES HD part numbers are not denoted by any part number suffix.

Where To Buy

Technical Specs

Axle
    Rear
Vane Design
    KP Vents
Outer diameter[mm]
    322
Height [mm]
    62.5
Brake Disc Thickness [mm]
    22
Minimum Thickness [mm]
    20.2
Centering Diameter [mm]
    68
Number of Holes
    5
Number of Holes
    5
Pitch Circle Diameter [mm]
    114.3
Surface Design
    Plain

Package Specs

Technical Specs:

AxleRear
Vane DesignR KP Vents
Outer diameter[mm]322
Height [mm]62.5
Brake Disc Thickness [mm]22
Minimum Thickness [mm]20.2
Centering Diameter [mm]68
Number of Holes5
Weight [kg]8.03
Pitch Circle Diameter [mm]114.3
Surface DesignPlain
