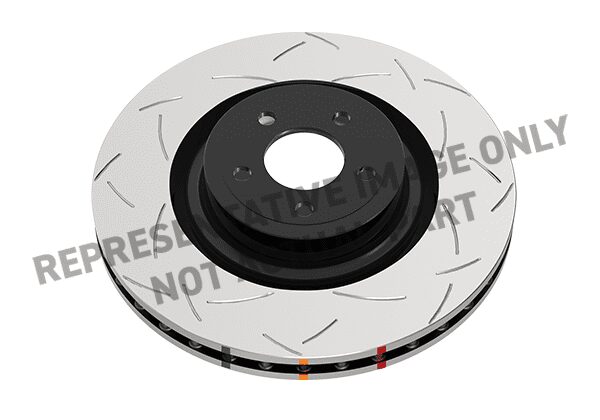

Rear 4000 Series T3 Brake Rotor
Rear 4000 Series T3 Brake Rotor

Rear 4000 Series T3 Brake Rotor

Sku
    DBA42157S
Diameter (mm):
    390
Axle:
    Rear
Per Car Qty Required
    2

4000 SERIES T3 is the ultimate in direct replacement single piece performance brake rotors Featuring all the benefits of the 4000 Series plus DBA’s patented world renowned T3 bi directional slot design.

Built on the foundations of DBA’s T2 slot, the T3 slot design features additional, precise, CNC machined tri symmetrical slots, resulting in an even quieter, more responsive and smoother brake pedal feel The T3 slot increases the number of exit points for brake pad friction dust and gases to escape through, further increasing the consistency and effectiveness of every brake stop.

We recommend a T3 slot for high performance and heavy off-roading applications.

Where To Buy

Technical Specs

Axle
    Rear
Vane Design
    KP Vents
Outer diameter[mm]
    390
Height [mm]
    124
Brake Disc Thickness [mm]
    39
Minimum Thickness [mm]
    37.4
Centering Diameter [mm]
    139.5
Number of Holes
    10
Number of Holes
    10
Pitch Circle Diameter [mm]
    139.5
Surface Design
    Slotted

Package Specs

Technical Specs:

AxleRear
Vane DesignR KP Vents
Outer diameter[mm]390
Height [mm]124
Brake Disc Thickness [mm]39
Minimum Thickness [mm]37.4
Centering Diameter [mm]139.5
Number of Holes10
Weight [kg]19.64
Pitch Circle Diameter [mm]139.5
Surface DesignSlotted
