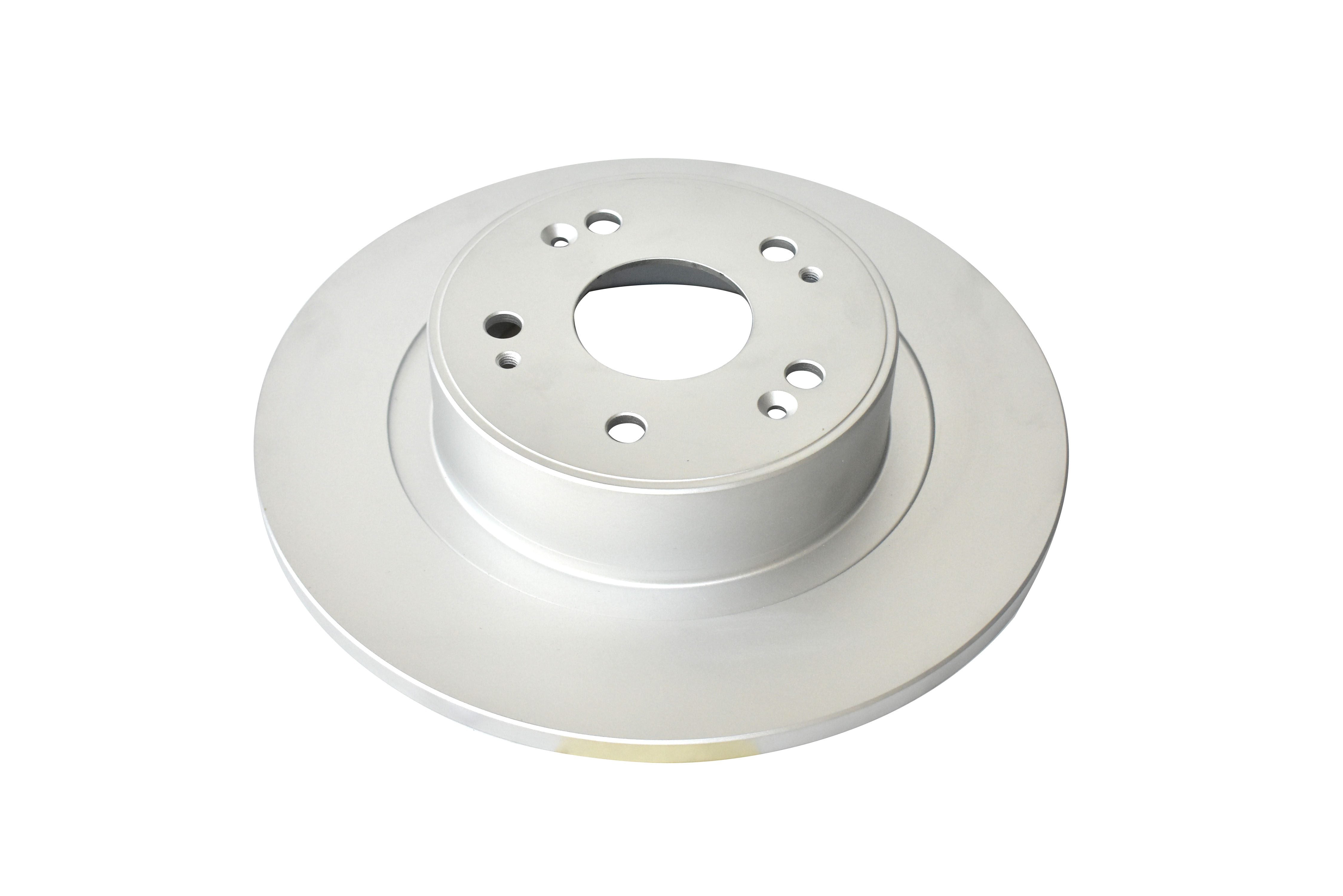

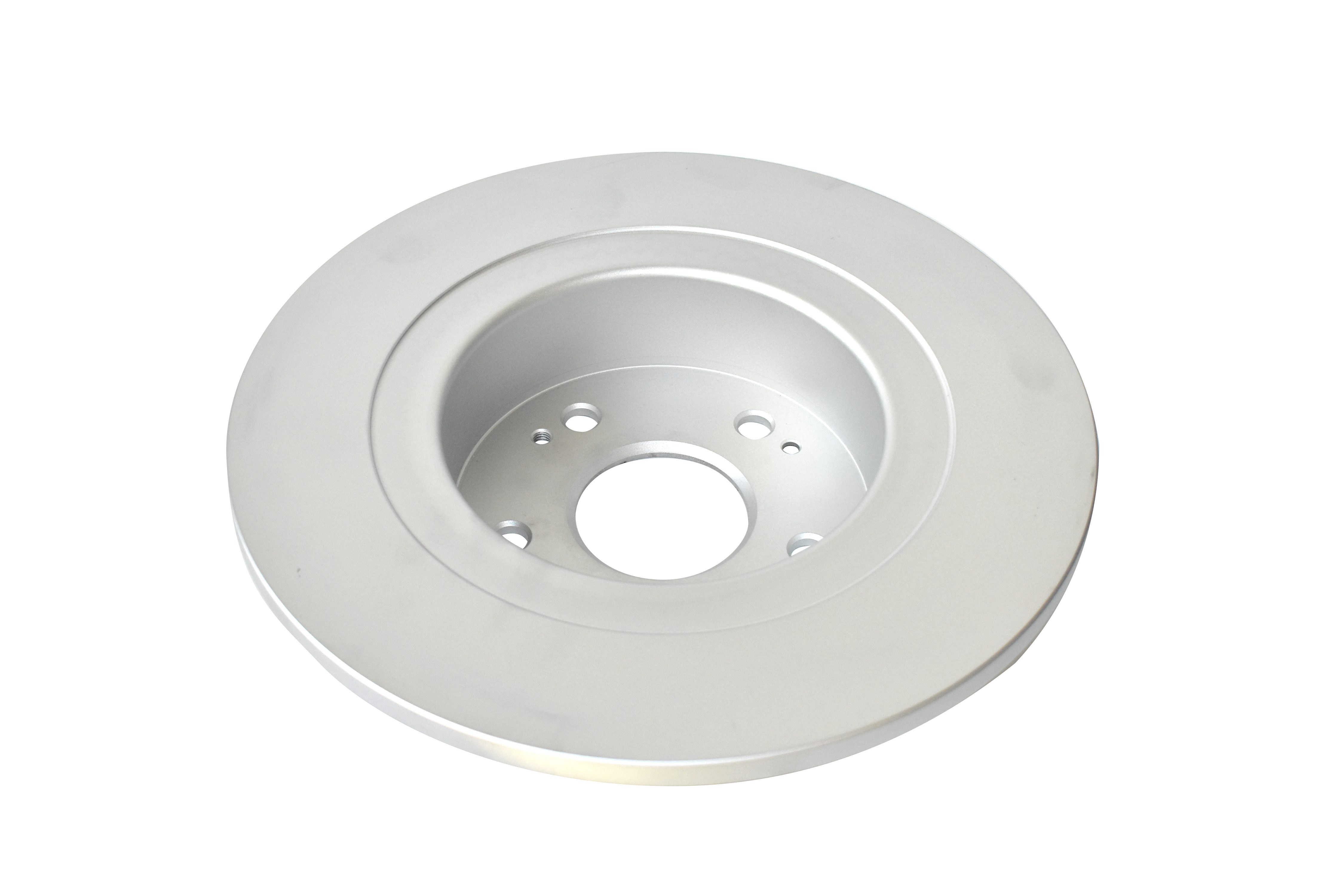

Rear Street Series En-shield Brake Rotor
Rear Street Series En-shield Brake Rotor
Rear Street Series En-shield Brake Rotor
Rear Street Series En-shield Brake Rotor

Rear Street Series En-shield Brake Rotor

Sku
    DBA3313E
Diameter (mm):
    304
Axle:
    Rear
Per Car Qty Required
    2

EnShield technology has been introduced to the Street Series range to provide corrosions resistant rotors, keeping the rotors looking good throughout service life.

The EnShield process begins with a zinc/aluminium water based coating being applied to the entire rotor surface and is then
baked on.

EnShield rotors are denoted by the suffix (E) in Street Series part numbers.

Where To Buy

Technical Specs

Axle
    Rear
Vane Design
    OE Vents
Outer diameter[mm]
    304
Height [mm]
    57.1
Brake Disc Thickness [mm]
    12
Minimum Thickness [mm]
    9.6
Centering Diameter [mm]
    64
Number of Holes
    5
Number of Holes
    5
Pitch Circle Diameter [mm]
    114.3
Surface Design
    Plain

Package Specs

Technical Specs:

AxleRear
Vane DesignR OE Vents
Outer diameter[mm]304
Height [mm]57.1
Brake Disc Thickness [mm]12
Minimum Thickness [mm]9.6
Centering Diameter [mm]64
Number of Holes5
Weight [kg]6.28
Pitch Circle Diameter [mm]114.3
Surface DesignPlain
