Rear Street Series XGold Brake Rotor
Rear Street Series XGold Brake Rotor
Rear Street Series XGold Brake Rotor
Rear Street Series XGold Brake Rotor

Rear Street Series XGold Brake Rotor

Sku
    DBA785X
Diameter (mm):
    312
Axle:
    Rear
Per Car Qty Required
    2

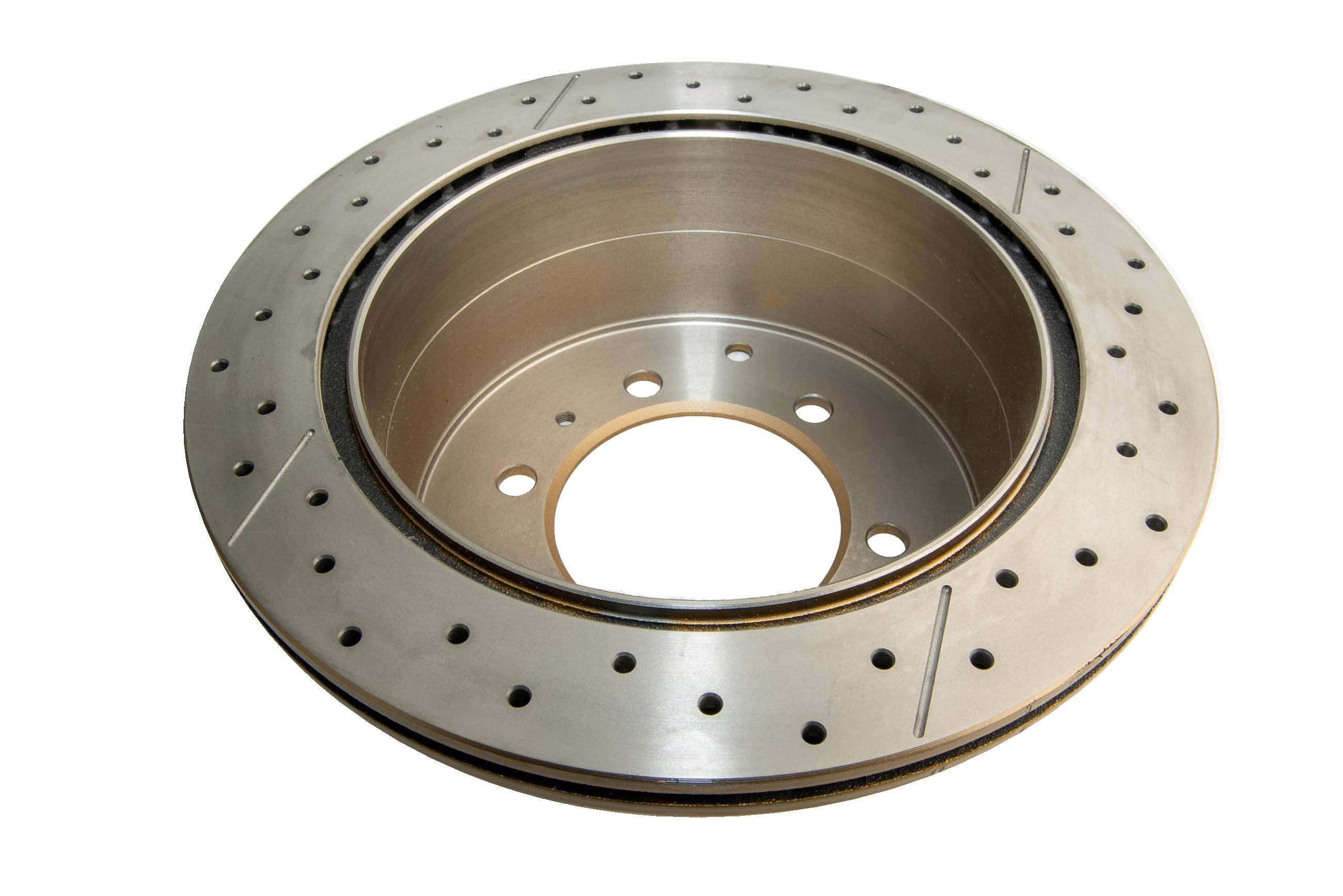

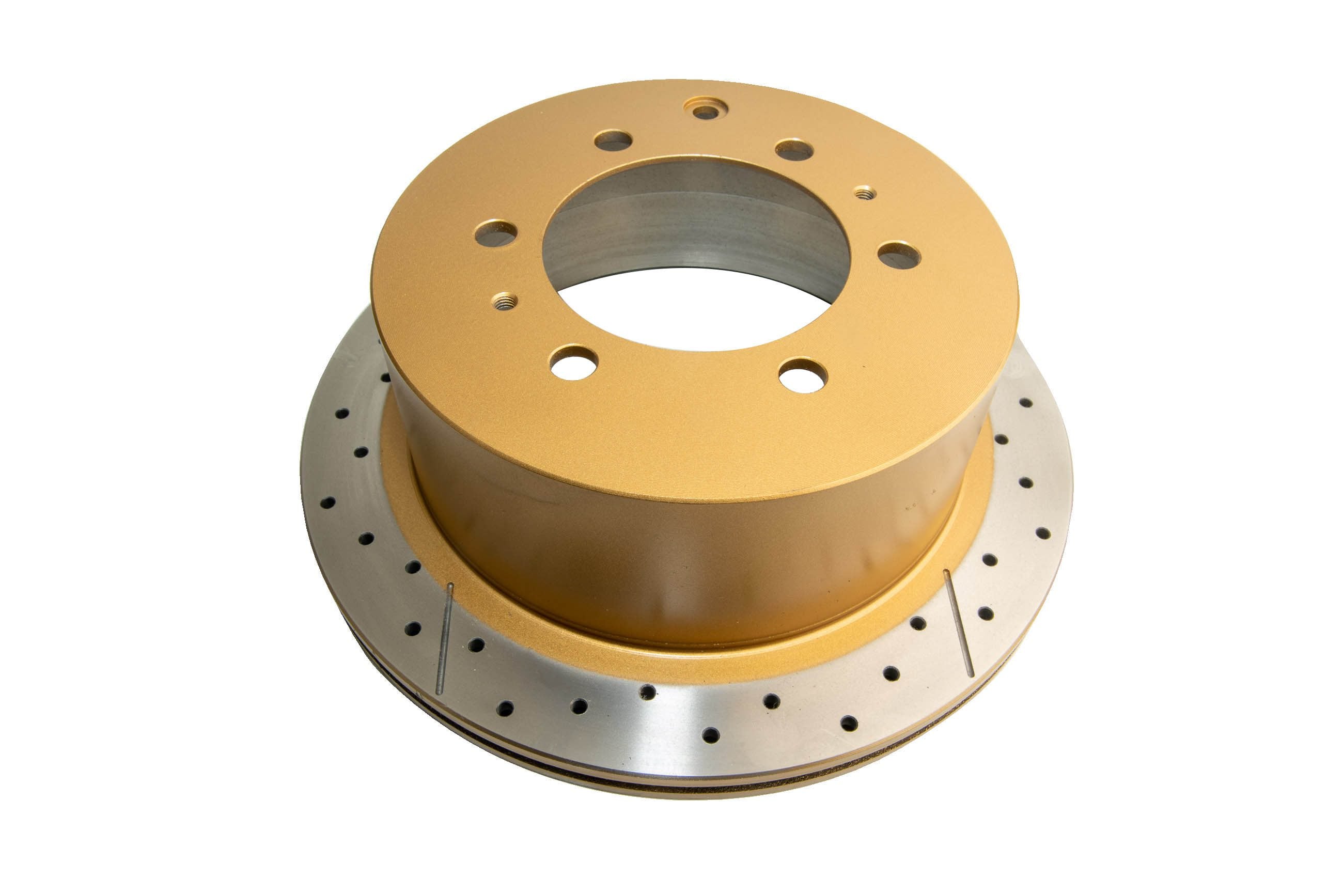

Street Series X Gold provides all the benefits of Street Series, with a premium non-directional cross drilled and slotted design, plus an attractive gold finish on the rotor hub.

The introduction of our unique cross drilled and slotted design increases the number of exit points, allowing more brake pad friction dust and gases to escape through both the cross drilled holes and slots, resulting in better braking performance.

While providing a similar performance benefit to the T2 slot, the X Gold is a popular alternative for show cars.

X Gold is denoted by the suffix (X) in Street Series part numbers.

Where To Buy

Technical Specs

Axle
    Rear
Vane Design
    OE Vents
Outer diameter[mm]
    312
Height [mm]
    103
Brake Disc Thickness [mm]
    18
Minimum Thickness [mm]
    16
Centering Diameter [mm]
    106
Number of Holes
    6
Number of Holes
    6
Pitch Circle Diameter [mm]
    140
Surface Design
    Cross Drilled/ Slotted

Package Specs

Technical Specs:

AxleRear
Vane DesignR OE Vents
Outer diameter[mm]312
Height [mm]103
Brake Disc Thickness [mm]18
Minimum Thickness [mm]16
Centering Diameter [mm]106
Number of Holes6
Weight [kg]8.12
Pitch Circle Diameter [mm]140
Surface DesignCross Drilled/ Slotted
